A complete range of house wiring solutions designed for safety, durability, and long-term performance.

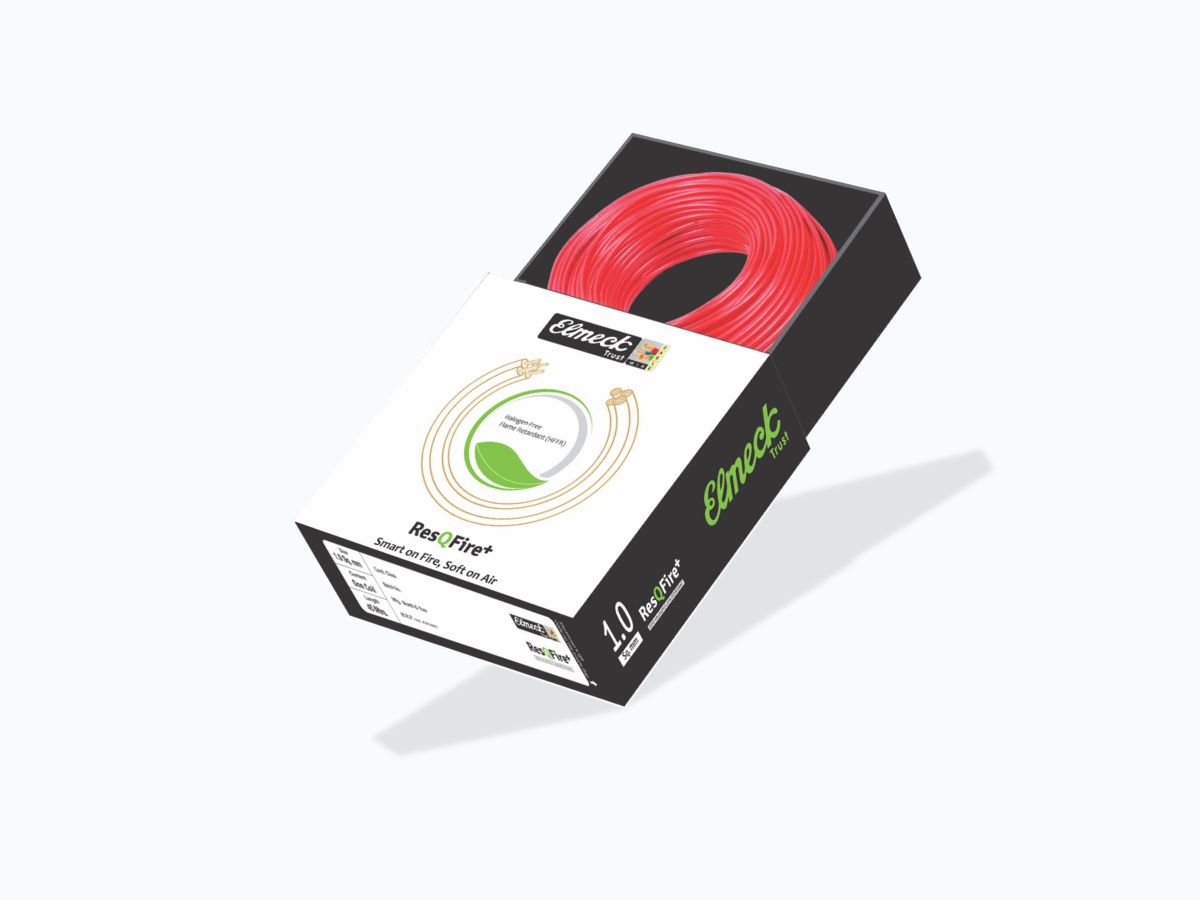

Halogen Free Flame Retardant (HFFR) cables for working voltages up to 1100V. ResQFire+ is engineered with zero-halogen insulation compound that emits very low smoke and essentially no toxic halogen gases in case of fire — the safest choice for homes, hospitals, schools, and public buildings.
Standard: IS 17048 : 2018
| Size (sq mm) | Class | Insulation Thk (mm) | Max OD (mm) | CCC Unenclosed / Clipped (A) | CCC Conduit / Trunking (A) | Max Resistance @ 20°C (Ω/km) |
|---|---|---|---|---|---|---|
| 1 | 2 — Rigid | 0.7 | 3.2 | 24 | 19 | 19.15 |
| 1 | 5 — Flexible | 0.6 | 3.0 | 29 | 23 | 18.1 |
| 1.5 | 2 — Rigid | 0.7 | 3.3 | 32 | 27 | 13.3 |
| 1.5 | 5 — Flexible | 0.7 | 3.4 | 37 | 29 | 12.1 |
| 2.5 | 2 — Rigid | 0.8 | 4.0 | 42 | 35 | 7.98 |
| 2.5 | 5 — Flexible | 0.8 | 4.1 | 57 | 40 | 7.41 |
| 4 | 5 — Flexible | 0.8 | 4.8 | 61 | 46 | 4.95 |
| 6 | 5 — Flexible | 0.8 | 5.3 | 78 | 59 | 3.3 |
| 10 | 5 — Flexible | 1.0 | 7.0 | 97 | 73 | 1.91 |
| 16 | 5 — Flexible | 1.0 | 8.1 | 130 | 98 | 1.21 |
| 25 | 5 — Flexible | 1.2 | 10.2 | 163 | 124 | 0.78 |
Standard: IS 17048 : 2018 — Annex A
| Property | Unit | HFI-TP 70 (Thermoplastic) | HFI-XL 70 (Crosslinked) | HFI-XL 90 (Crosslinked) |
|---|---|---|---|---|
| Rated Temperature | °C | 70 | 70 | 90 |
| Tensile Strength (min.) | N/mm² | 7.5 | 10 | 10 |
| Elongation at Break (min.) | % | 150 | 125 | 125 |
| Ageing Temperature | °C | 100 ± 2 | 135 ± 2 | 135 ± 2 |
| Ageing Duration | hrs | 168 | 168 | 168 |
| TS Variation after Ageing | % | ± 20 | ± 30 | ± 30 |
| Elong. Variation after Ageing | % | ± 20 | ± 30 | ± 25 |
| Hot Deformation (max.) | % | 50 @ 80°C | — | — |
| Hot Set — Elong. under Load | % | — | Max. 175 | Max. 175 |
| Hot Set — Permanent Set (max.) | % | — | Max. 15 | Max. 15 |
| Cold Bend Temperature | °C | -15 ± 2 | -15 ± 2 | -15 ± 2 |
| Cold Impact Temperature | °C | -15 ± 2 | -15 ± 2 | -15 ± 2 |
| Cold Bend / Impact Result | — | No Cracks | No Cracks | No Cracks |
| Ozone Resistance | — | No Cracks @ 25°C | No Cracks @ 25°C | No Cracks @ 25°C |
| Oxygen Index (min.) | — | ≥ 31 | N/A | N/A |
| Temperature Index (min.) | °C | ≥ 250 (at OI=21) | N/A | N/A |
| Insulation Resistance (min.) | MΩ·km | 0.037 @ 70°C | 0.037 @ 70°C | 0.037 @ 90°C |
| pH (min.) | — | > 4.3 | > 4.3 | > 4.3 |
| Conductivity (max.) | µS/mm | < 10 | < 10 | < 10 |
| HCl + HBr Content (max.) | % | < 0.5 | < 0.5 | < 0.5 |
| HF Content (max.) | % | < 0.1 | < 0.1 | < 0.1 |

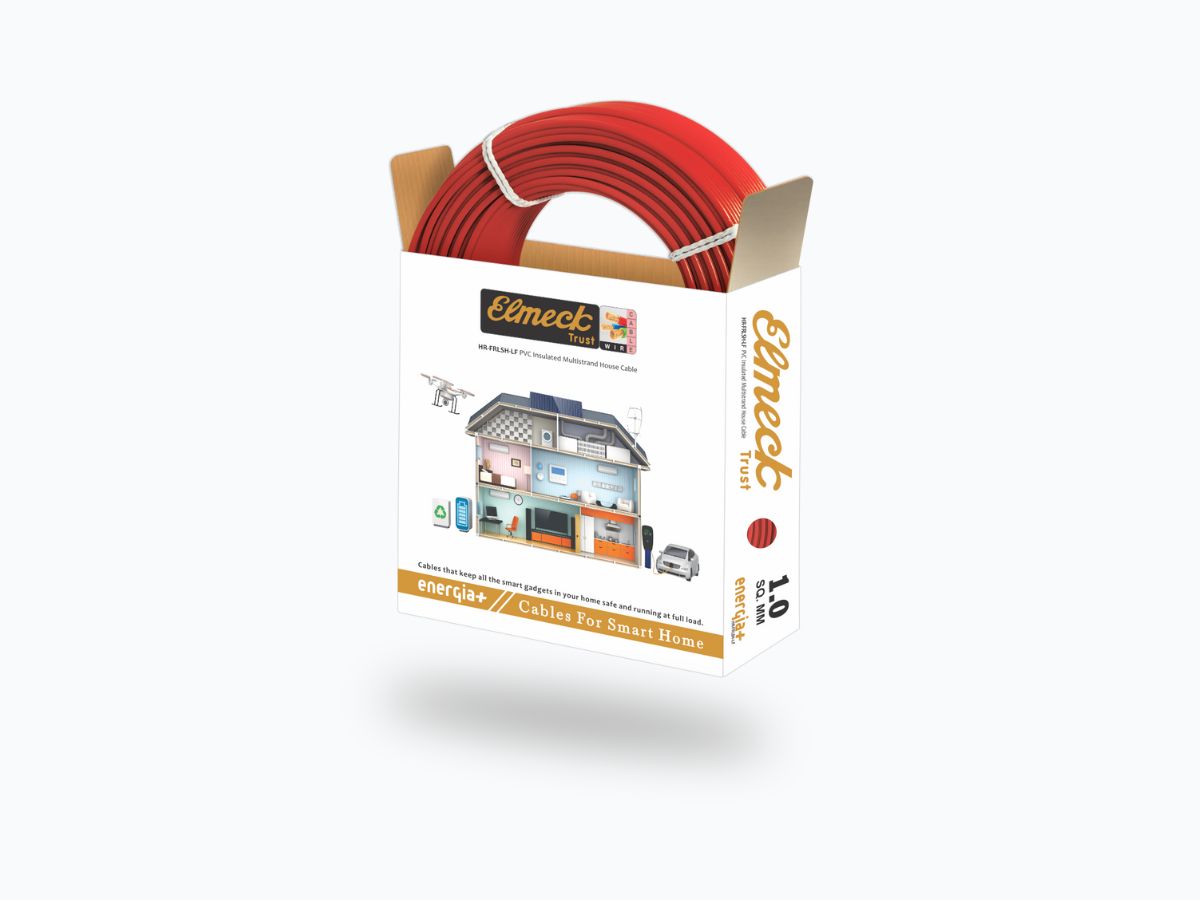

Single Core FRLSH PVC Insulated Industrial/House Grade Copper Conductor (Unsheathed) Flexible Cables, 1100 Volts. Energia+ is built with plain annealed copper conductors as per IS 8130, with FRLS outer insulation that delivers fire retardancy, low smoke emission, and halogen-free safety for modern homes.
Standard: IS 694 : 2010
| Size (sq mm) | Strands (No./mm) | Insulation Thk (mm) | Approx OD (mm) | CCC Unenclosed / Clipped / Tray (A) | CCC Conduit / Trunking (A) | Max Resistance @ 20°C (Ω/km) |
|---|---|---|---|---|---|---|
| 0.75 | 24/0.2 | 0.6 | 2.8 | 15 | 12 | 26 |
| 1 | 14/0.3 | 0.6 | 3.0 | 29 | 23 | 18.1 |
| 1.5 | 22/0.3 | 0.7 | 3.4 | 37 | 29 | 12.1 |
| 2.5 | 36/0.3 | 0.8 | 4.1 | 57 | 40 | 7.41 |
| 4 | 56/0.3 | 0.8 | 4.8 | 61 | 46 | 4.95 |
| 6 | 84/0.3 | 0.8 | 5.3 | 78 | 59 | 3.3 |
| 10 | 80/0.4 | 1.0 | 7.0 | 97 | 73 | 1.91 |
| 16 | 126/0.4 | 1.0 | 8.1 | 130 | 98 | 1.21 |
| 25 | 196/0.4 | 1.2 | 10.2 | 163 | 124 | 0.78 |

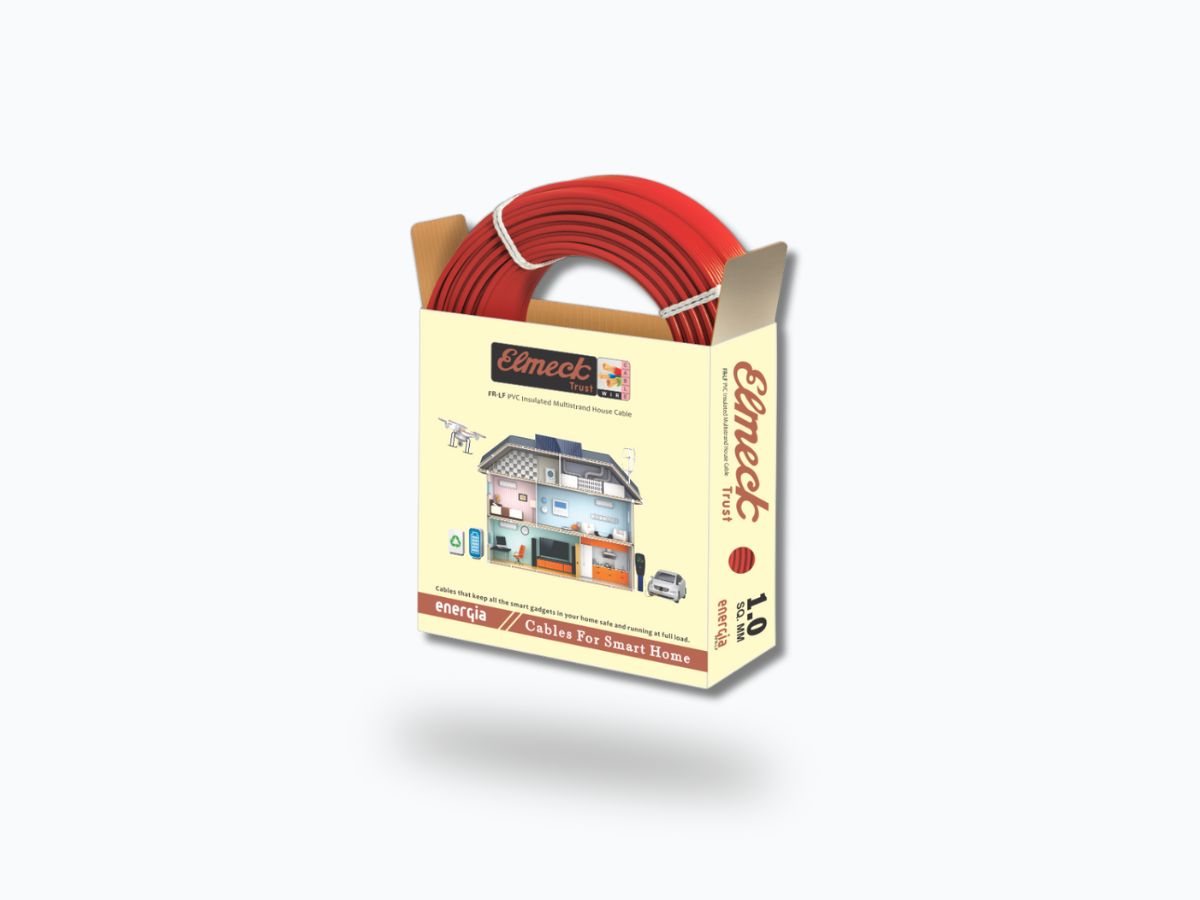

A dependable everyday wiring solution offering a balanced combination of performance, durability, and affordability.

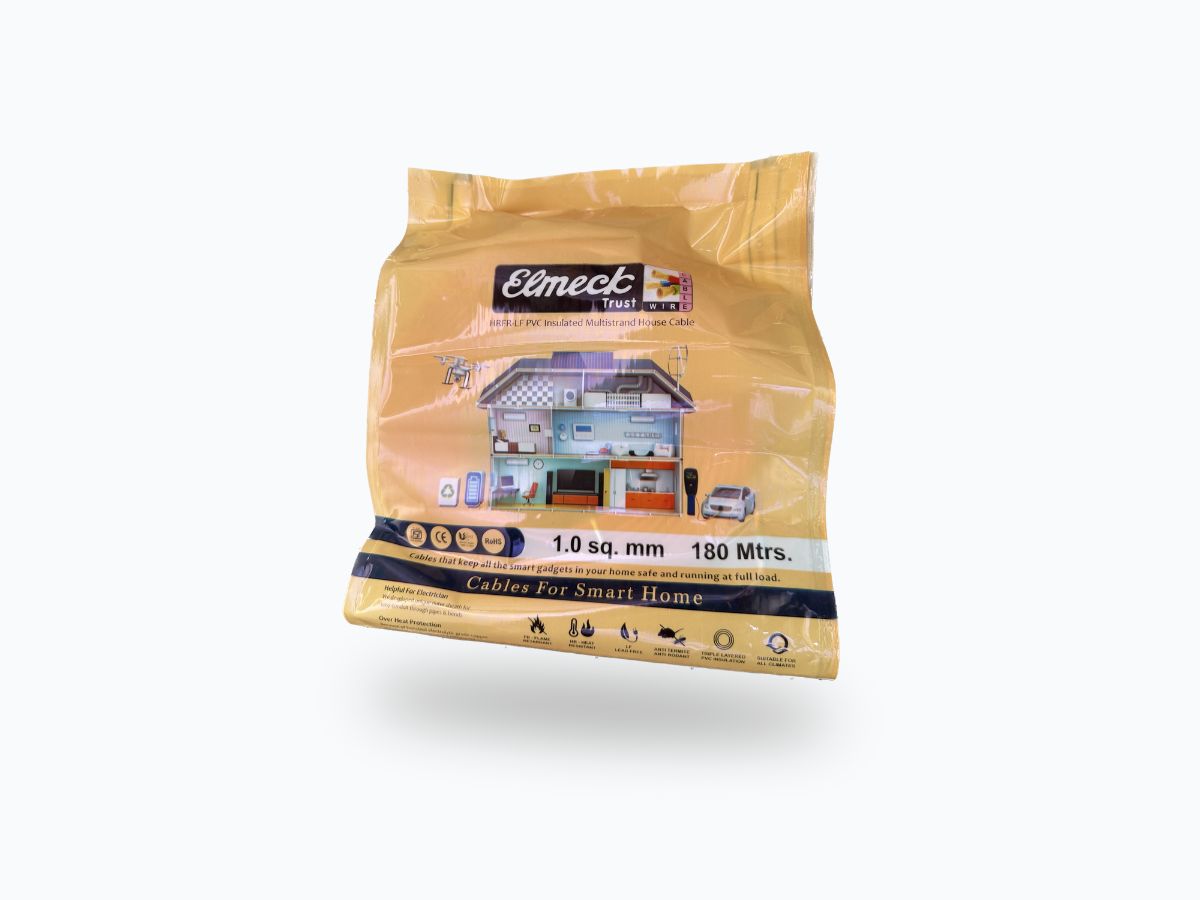

Designed for large-scale housing and infrastructure projects where consistency and cost efficiency are critical.
Reliable multi-strand house wires suitable for standard residential and light commercial wiring.
An economical solution for basic wiring needs without compromising essential safety norms.
Top Rated Brand
Quality Tested
30+ Years
Manufacturing Experience
200+ Cities
Pan-India Delivery
RoHS & CE
International Compliance
FAQs
Yes, all Elmeck house wires are ISI certified and manufactured in full compliance with BIS (Bureau of Indian Standards) requirements under IS 694, ensuring safety, durability, and long-term electrical performance.
Elmeck manufactures a complete range of house wires: ResQFire+ (fire-survival grade), Energia+ (premium LSHF), Energia (standard FR PVC), Project Pack (bulk supply), Alron, and Areek — covering all budgets and installation requirements.
FR (Flame Retardant) wire slows flame spread during short circuits. LSHF (Low Smoke Halogen-Free) wire, like Elmeck Energia+, additionally emits minimal toxic smoke and zero halogen gases during a fire — making it ideal for enclosed residential and commercial spaces.
Elmeck house wires are available in conductor cross-sections from 0.75 sq mm to 6 sq mm, covering all standard residential, commercial, and light industrial wiring requirements.
Elmeck house wires are available through our authorized dealer network across India. Contact us via WhatsApp (+91-9311152255) or email at [email protected] for the nearest dealer or bulk pricing.
When installed correctly within specified load ratings, Elmeck house wires are engineered for 25+ years of service life, backed by 99.97% electrolytic-grade copper conductors and high-quality FR PVC insulation.
